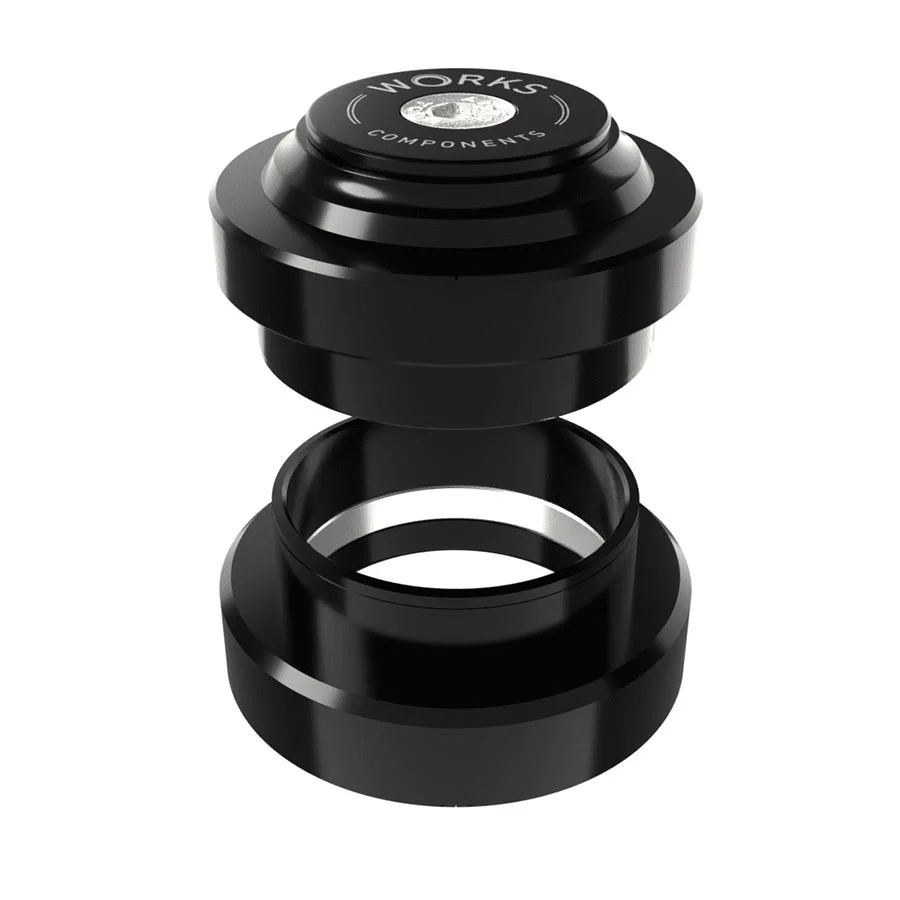

Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm
HomeStore

Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm

Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm

$35.00

Original: $99.99

-65%
Works Components 1.5deg EC44-EC44 Angleset Headset : EC44/28.6 | EC44/40 External Threadless Complete Black Set 2 100-109mm—

$99.99

$35.00

The Story

  • To suit tapered forks If you are running a 1 1/8" fork you will need to purchase the Works Components reducer crown. - this headset comes as standard with a crown race to suit tapered forks Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 16mm Lower cup Stack height: 14mm Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing Upper cup insertion depth: 9mm Lower cup insertion depth: 10.5mm Split type 7075-T6 aluminium crown race for simple, tool free installation Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment
    • TECH SPECS
    Bearing Grade ACB Sealed
    Crown Race Diameter 44mm
    Lower Cup 44mm
    Headset Type External Threadless
    Upper Cup 44mm
    Misc Headtube length 90-99mm
    Material 7075-T6 Aluminum
    Primary Color Black
    S.H.I.S. EC44/28.6 | EC44/40
    Stack Height 16
    Headset Position Complete
    SHIS Upper EC44/28.6
    SHIS Lower EC44/30
    Angle 1.5°
    Angle 1.5°
    Headtube Length 100-109Mm

    Description

  • To suit tapered forks If you are running a 1 1/8" fork you will need to purchase the Works Components reducer crown. - this headset comes as standard with a crown race to suit tapered forks Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 16mm Lower cup Stack height: 14mm Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing Upper cup insertion depth: 9mm Lower cup insertion depth: 10.5mm Split type 7075-T6 aluminium crown race for simple, tool free installation Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment
    • TECH SPECS
    Bearing Grade ACB Sealed
    Crown Race Diameter 44mm
    Lower Cup 44mm
    Headset Type External Threadless
    Upper Cup 44mm
    Misc Headtube length 90-99mm
    Material 7075-T6 Aluminum
    Primary Color Black
    S.H.I.S. EC44/28.6 | EC44/40
    Stack Height 16
    Headset Position Complete
    SHIS Upper EC44/28.6
    SHIS Lower EC44/30
    Angle 1.5°
    Angle 1.5°
    Headtube Length 100-109Mm
